- ★[Powerful Steering System] - This 150 HP Hydraulic Steering Kit features a balanced steering cylinder, smooth low-friction helm, two 20ft hoses, and a fill kit, providing a reliable upgrade for worn or damaged systems.
- ★[Application] - Designed for outboard motors up to 150 HP, this kit suits runabouts, inflatables, and other single-station marine applications.
- ★[High-Performance] - Operating at up to 6.9 Mpa/1000 psi, this pump ensures effortless control and includes a user-replaceable shaft seal for long-term maintenance.
- ★[Robust Construction Hoses] - Includes ❖two 20ft (5/16")❖ nylon hoses with quick-connect 1/4" fittings for simple setup and customization to fit various boat configurations.
- ★[After Sale]: Within 1 Year, if you encounter any problem with this Hydraulic Steering Kit, we will solve it for you. Please check the compatibility carefully before purchasing.
Ⅰ. 150HP Hydraulic Outboard Steering Kit
This hydraulic steering kit allows you to install of hydraulic steering onto your 150 HP max. (or less) outboard-powered boats. Our steering kit consists of a low friction helm for smooth and comfortable steering. A balanced cylinder – featuring a compact design. For your convenience, two lengths of 20' hoses and fill tubes are supplied for easy operation.
Ⅱ. Features
150 HP Hydraulic Steering Kit
Built-in Two-way Lock Cylinder
Max. 150 HP Helm Pump
Cut-to-length Hoses
Ⅲ. Specifications
Application: Up to 150HP
Pumps: NR150
Cylinders: MR150
Max Pressure: 6.9Mpa (1000psi)
Output Force: 409.7kgf
Volume: 118 cc
Tube I.D:Φ31.8 mm
Rod I.D: Φ16mm; Strode: 197.3 mm

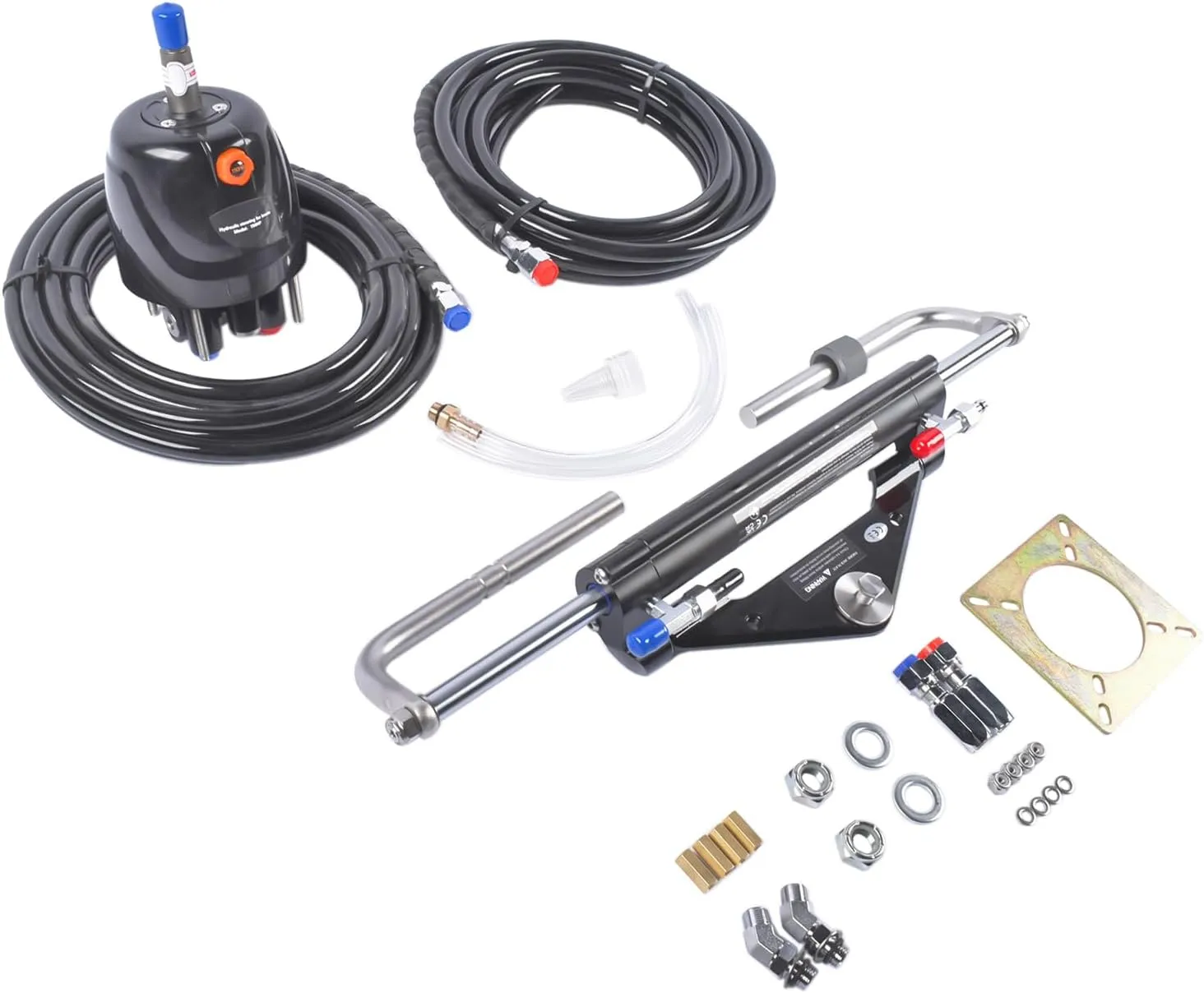

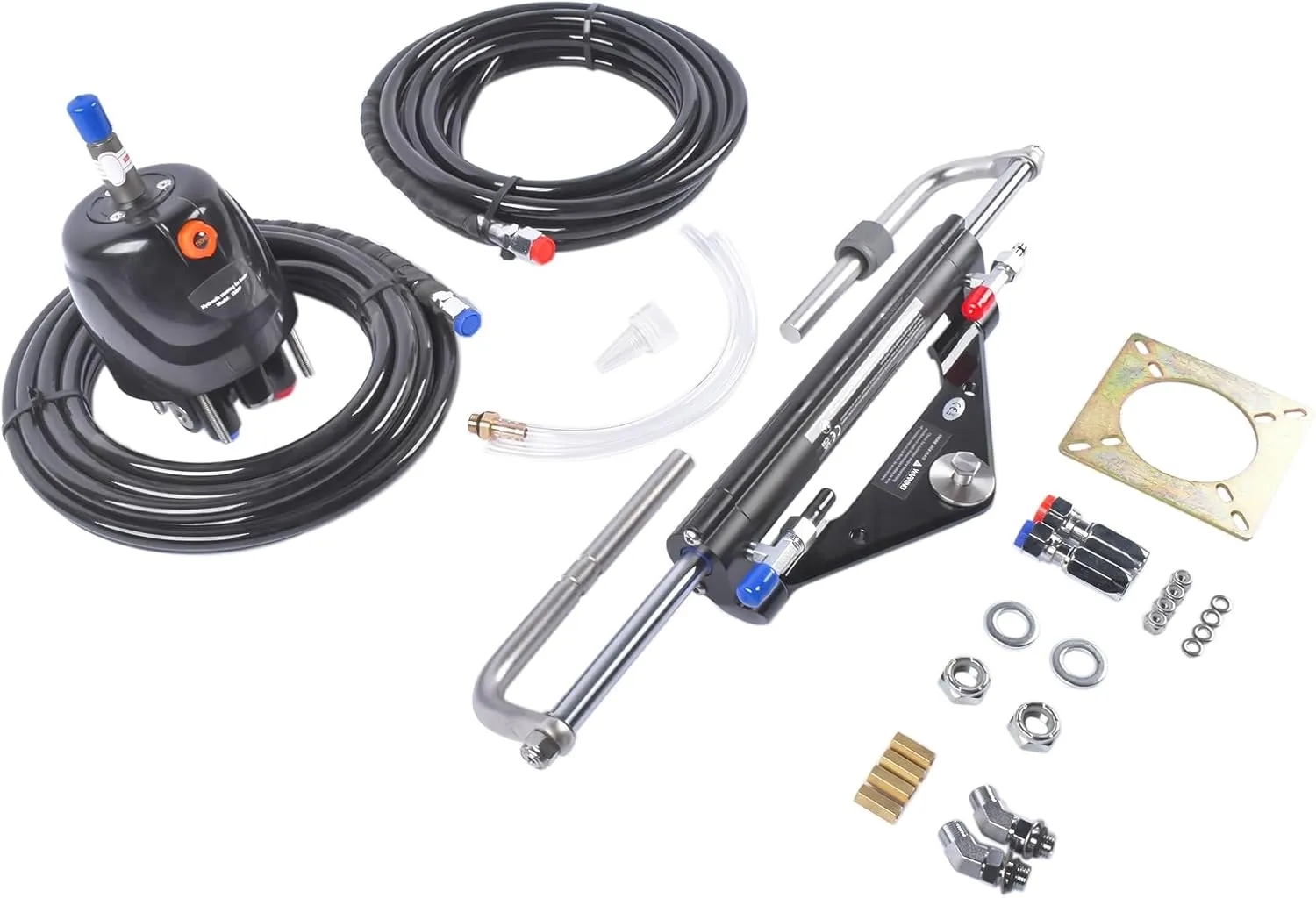

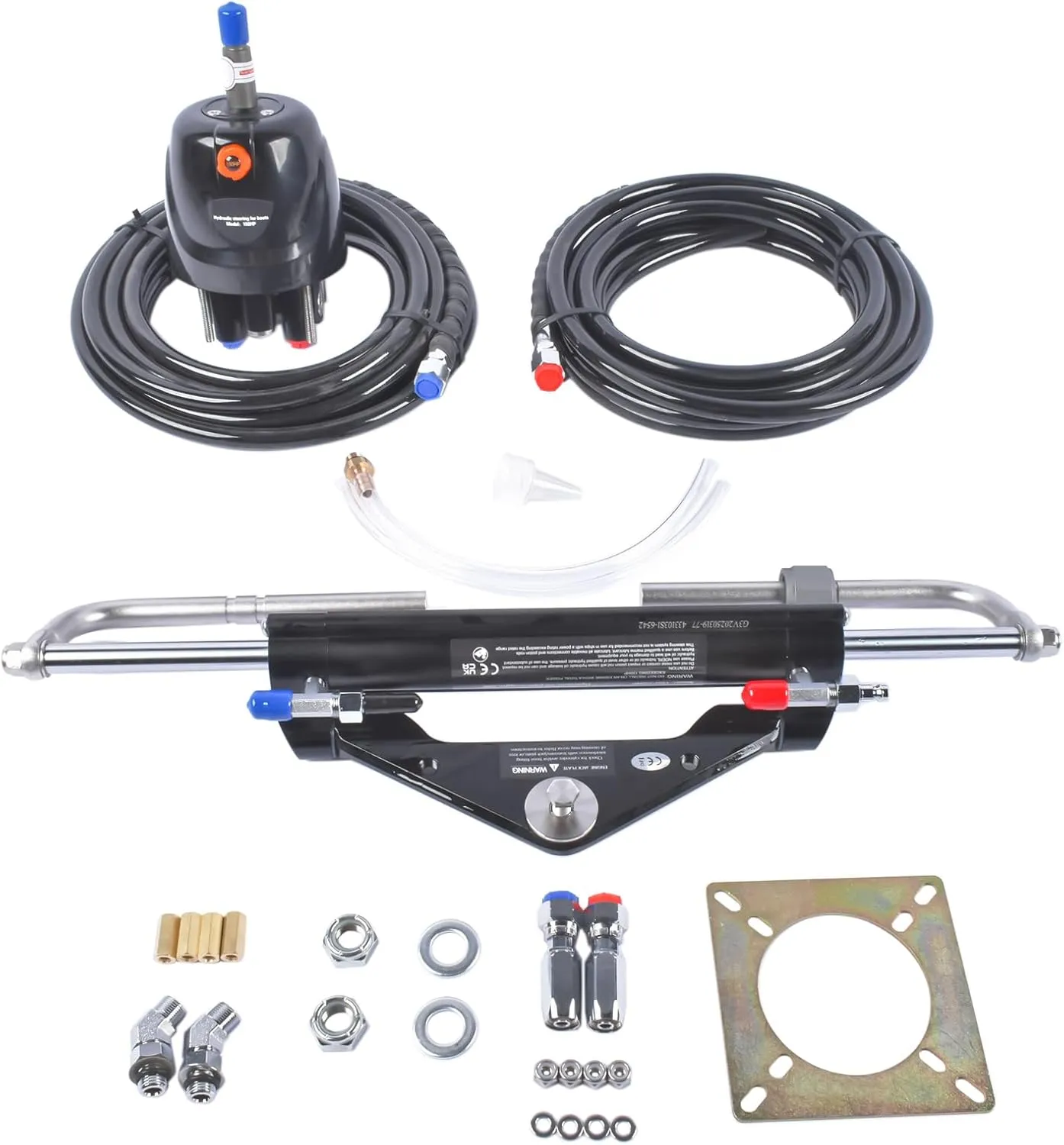

Ⅳ. Package Includes
1 x Hydraulic Pump
2 x 20ft Hose
1 x Cylinder
1 x Accessory Kit (As Pics Shown)
Note: Hydraulic oil is not included with this kit.
